TS MG1 车制机械密封件 替换 AESSEAL B02,博格曼 MG1,福斯 190,MTU FG1;用于 Hecker HN 410SU TS MG12(TSG2) 替换AESSEAL B012,博格曼 MG12,福斯 192, MTU FG2；用于 Hecker HN 410KU
TS MG1(TSG) TS MG12(TSG2) 技术参数 ： 压力：1.2MPa 线速度：10m/s 温度：-20℃～+120℃ 动环(石墨/碳化娃/碳化钨） 静环(陶瓷/碳化硅/碳化钨） 辅助密封(丁腈胶/三...
我们在这里专业解决你的问题
马上联系我们吧
- 电话:0086-21-58355541
- 传真:0086-21-58353141
- 邮箱: trisun24@trisunltd.com（销售）
技术参数：
压力：≤1.2MPa
线速度：≤10m/s
温度：-20℃～+120℃
动环(石墨/碳化娃/碳化钨）

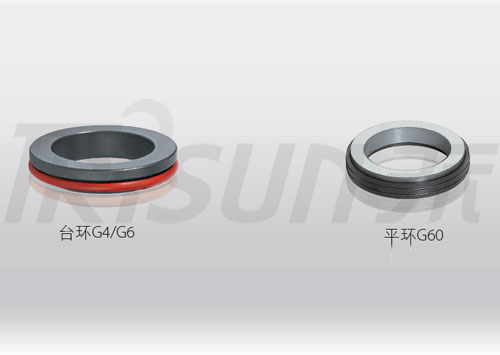

静环(陶瓷/碳化硅/碳化钨）
辅助密封(丁腈胶/三元乙丙胶/氟胶)
弹簧及其它金属件(不锈钢）
|

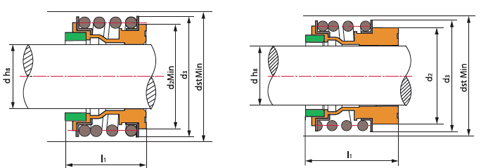

TS MG1 |
|||||
|
Seal size |
d |
d2 |
d3 |
dst |
l1 |
|
8 |
8 |
17.5 |
19.0 |
23.0 |
12.5 |
|
10 |
10 |
20.5 |
22.5 |
24.0 |
14,5 |
|
12 |
12 |
22.5 |
25.0 |
26.0 |
15.0 |
|
14 |
14 |
26.5 |
28.5 |
30.0 |
17.0 |
|
15 |
15 |
26.5 |
28.5 |
30.0 |
17.0 |
|
16 |
16 |
26.5 |
28.5 |
30.0 |
17.0 |
|
18 |
18 |
29.0 |
32.0 |
33.0 |
19.5 |
|
19 |
19 |
33.0 |
37.0 |
38.0 |
21.5 |
|
20 |
20 |
33.0 |
37.0 |
38.0 |
21.5 |
|
22 |
22 |
33.0 |
37.0 |
38.0 |
21.5 |
|
24 |
24 |
38.0 |
42.5 |
44.0 |
22.5 |
|
25 |
25 |
38.0 |
42.5 |
44.0 |
23.0 |
|
28 |
28 |
44.0 |
49.0 |
50.0 |
26.5 |
|
30 |
30 |
44.0 |
49.0 |
50.0 |
26.5 |
|
32 |
32 |
46.0 |
53.5 |
55.0 |
27.5 |
|
33 |
33 |
46.0 |
53.5 |
55.0 |
27.5 |
|
35 |
35 |
50.0 |
57.0 |
59.0 |
28,5 |
|
38 |
38 |
53.0 |
59.0 |
61.0 |
30.0 |
|
40 |
40 |
55.0 |
62.0 |
64.0 |
30.0 |
|
42 |
42 |
58.0 |
65.5 |
67.0 |
30.0 |
|
43 |
43 |
58.0 |
65.5 |
67.0 |
30.0 |
|
45 |
45 |
60.0 |
68.0 |
70.0 |
30.0 |
|
48 |
48 |
63.0 |
70.5 |
74.0 |
30.5 |
|
50 |
50 |
65.0 |
74.0 |
77.0 |
30.5 |
|
53 |
53 |
70.0 |
78.5 |
81.0 |
33.0 |
|
55 |
55 |
72.0 |
81.0 |
83.0 |
35.0 |
|
58 |
58 |
75.0 |
85.5 |
88.0 |
37.0 |
|
60 |
60 |
79.0 |
88.5 |
91.0 |
38.0 |
|
65 |
65 |
84.0 |
93.5 |
96.0 |
40.0 |
|
68 |
68 |
88.0 |
96.5 |
100.0 |
40.0 |
|
70 |
70 |
90.0 |
99.5 |
103.0 |
40.0 |
|
75 |
75 |
95.0 |
107.0 |
110.0 |
40.0 |
|
80 |
80 |
100.0 |
112.0 |
116.0 |
40.0 |
|
85 |
85 |
107.0 |
120.0 |
124.0 |
41.0 |
|
90 |
90 |
114.0 |
127.0 |
131.0 |
45.0 |
|
95 |
95 |
119.0 |
132.0 |
136.0 |
46.0 |
|
100 |
100 |
124.0 |
137.0 |
140.0 |
47.0 |
|
TS MG12 |
|||||
|
Seal size |
d |
d2 |
dst |
d3 |
l1 |
|
10 |
10 |
20.5 |
24.0 |
22.5 |
25.9 |
|
12 |
12 |
22.5 |
26.0 |
25.0 |
25.9 |
|
14 |
14 |
26.5 |
30.0 |
28.5 |
28.4 |
|
16 |
16 |
26.5 |
30.0 |
28.5 |
28.4 |
|
18 |
18 |
29.0 |
33.0 |
32.0 |
30.0 |
|
20 |
20 |
33.0 |
38.0 |
37.0 |
30.0 |
|
22 |
22 |
33.0 |
38.0 |
37.0 |
30.0 |
|
24 |
24 |
38.0 |
44.0 |
42.5 |
32.5 |
|
25 |
25 |
38.0 |
44.0 |
42.5 |
32.5 |
|
28 |
28 |
44.0 |
50.0 |
49.0 |
35.0 |
|
30 |
30 |
44.0 |
50.0 |
49.0 |
35.0 |
|
32 |
32 |
46.0 |
55.0 |
53.5 |
35.0 |
|
33 |
33 |
46.0 |
55.0 |
53.5 |
35.0 |
|
35 |
35 |
50.0 |
59.0 |
57.0 |
35.0 |
|
38 |
38 |
53.0 |
61.0 |
59.0 |
36.0 |
|
40 |
40 |
55.0 |
64.0 |
62.0 |
36.0 |
|
43 |
43 |
58.0 |
67.0 |
65.5 |
36.0 |
|
45 |
45 |
60.0 |
70.0 |
68.0 |
36.0 |
|
48 |
48 |
63.0 |
74.0 |
70.5 |
36.0 |
|
50 |
50 |
65.0 |
77.0 |
74.0 |
38.0 |
|
53 |
53 |
70.0 |
81.0 |
78.5 |
36.5 |
|
55 |
55 |
72.0 |
83.0 |
81.0 |
36.5 |
|
58 |
58 |
75.0 |
88.0 |
85.5 |
41.5 |
|
60 |
60 |
79.0 |
91.0 |
88.5 |
41.5 |
|
65 |
65 |
84.0 |
96.0 |
93.5 |
41.5 |
|
68 |
68 |
88.0 |
100.0 |
96.5 |
41.2 |
|
70 |
70 |
90.0 |
103.0 |
99.5 |
48.7 |
|
75 |
75 |
95.0 |
110.0 |
107.0 |
48.7 |
|
80 |
80 |
100.0 |
116.0 |
112.0 |
48.0 |
|
85 |
85 |
107.0 |
124.0 |
120.0 |
46.0 |
|
90 |
90 |
114.0 |
131.0 |
127.0 |
51.0 |
|
95 |
95 |
119.0 |
136.0 |
132.0 |
51.0 |
|
100 |
100 |
124.0 |
140.0 |
137.0 |
51.0 |
