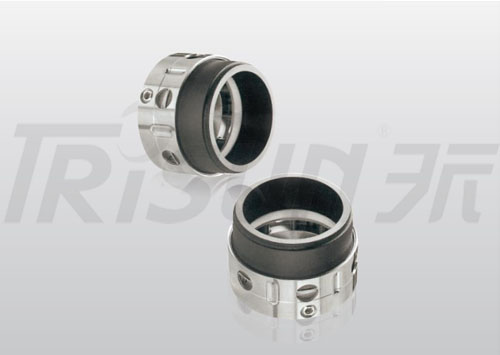

TS 109B 车制机械密封件
TS 109B 技术参数： 压力：2.5MPa 线速度：25 m/s 温度:-30℃～+200℃ 静环型式： TS109B标准配A静环 另可配P/PP静环 动环(石墨/碳化硅/碳化钨） 静环(99瓷/碳化硅...
我们在这里专业解决你的问题
马上联系我们吧
- 电话:0086-21-58355541
- 传真:0086-21-58353141
- 邮箱: trisun24@trisunltd.com（销售）
TS 109B
技术参数：
压力：≤2.5MPa
线速度：≤25 m/s
温度:-30℃～+200℃
静环型式：
TS109B标准配A静环
另可配P/PP静环
动环(石墨/碳化硅/碳化钨）
静环(99瓷/碳化硅/碳化钨）
辅助密封(聚四氟乙烯）
弹簧及其它金属件(不锈钢）
结构特点：
1、采用聚四氟乙烯，可耐腐蚀，适用于化学工业。
2、可应用于各种旋转设备，如离心泵,搅拌器、搅拌式轧碎机。
3、机械式驱动，减少轴和轴套的磨损，密封为双旋向。
4、多弹簧非平衡型；符合API610标准。
|

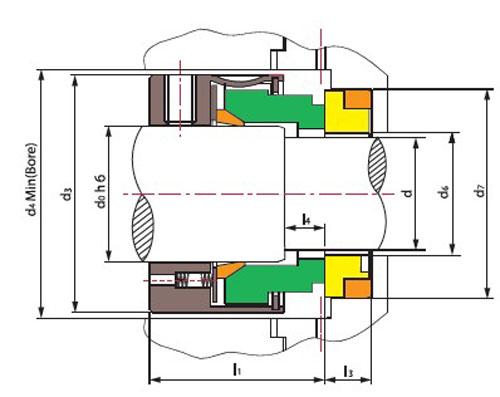

Seal size |
d |
d0 |
d3 |
d4 |
d6 |
d7 |
l1 |
l3 |
l4 |
|
0.625 |
12.7 |
15.88 |
30.7 |
34 |
13.4 |
25.40 |
27 |
7.95 |
4.8 |
|
0.750 |
15.9 |
19.05 |
34.0 |
37 |
16.6 |
31.75 |
30 |
10.3 |
4.8 |
|
0.875 |
19.1 |
22.23 |
37.2 |
40 |
19.7 |
34.93 |
32 |
10.3 |
6.4 |
|
1.000 |
22.2 |
25.40 |
40.3 |
43 |
22.9 |
38.10 |
33 |
10.3 |
6.4 |
|
1.125 |
25.4 |
28.58 |
43.5 |
46 |
26.1 |
41.28 |
35 |
11.1 |
7.9 |
|
1.250 |
28.6 |
31,75 |
48.3 |
51 |
29.3 |
44.45 |
35 |
11.1 |
7.9 |
|
1.375 |
28.6 |
34.93 |
51.5 |
54 |
29.3 |
44.45 |
37 |
11.1 |
8.7 |
|
1.500 |
31.8 |
38.10 |
54.6 |
58 |
32.4 |
47.63 |
37 |
11.1 |
8.7 |
|
1.625 |
34.9 |
41.28 |
61.0 |
64 |
35.6 |
50.80 |
45 |
11.1 |
8.7 |
|
1.750 |
38.1 |
44.45 |
64.2 |
67 |
39.8 |
53.98 |
45 |
11.1 |
9.5 |
|
1.875 |
41.3 |
47.63 |
67.3 |
70 |
42.4 |
60.33 |
45 |
12.7 |
9.5 |
|
2.000 |
44.5 |
50.80 |
70.5 |
73 |
45.5 |
63.50 |
45 |
12.7 |
9.5 |
|
2.125 |
47.6 |
53.98 |
76.9 |
80 |
48.7 |
66.68 |
52 |
12.7 |
11.1 |
|
2.250 |
50.8 |
57.15 |
80.0 |
83 |
51.9 |
69.86 |
52 |
12.7 |
11.1 |
|
2.375 |
54.0 |
60.33 |
83.2 |
86 |
55.0 |
76.20 |
52 |
14.3 |
11.1 |
|
2.500 |
57.2 |
63.50 |
86.4 |
89 |
58.2 |
79.38 |
52 |
14.3 |
11.1 |
|
2.625 |
60.3 |
66.68 |
89.6 |
92 |
61.4 |
82.55 |
52 |
14.3 |
11.1 |
|
2.750 |
63.5 |
69.85 |
92.7 |
96 |
64.6 |
85.73 |
52 |
14.3 |
11.1 |
|
2.875 |
66.7 |
73.03 |
95.9 |
99 |
67.7 |
85.73 |
52 |
14.3 |
11.1 |
|
3.000 |
69.9 |
76.20 |
97.5 |
100 |
70.9 |
88.90 |
52 |
15.9 |
11.1 |
|
3.125 |
73.0 |
79.38 |
100.7 |
104 |
74.1 |
95.25 |
52 |
15.9 |
11.1 |
|
3.250 |
76.2 |
82.55 |
105.4 |
108 |
77.3 |
98.43 |
52 |
15.9 |
14.3 |
|
3.375 |
79.4 |
85.73 |
108.6 |
111 |
80.5 |
101.60 |
52 |
19.8 |
14.3 |
|
3.500 |
82.6 |
88.90 |
111.8 |
115 |
83.6 |
104.78 |
52 |
19.8 |
14.3 |
|
3.625 |
85.7 |
92.08 |
115.0 |
118 |
86.8 |
107.95 |
52 |
19.8 |
14.3 |
|
3.750 |
88.9 |
95.25 |
118.1 |
121 |
90.0 |
111.13 |
52 |
19.8 |
14.3 |
|
3.875 |
92.1 |
98.43 |
121.3 |
124 |
93.1 |
114.30 |
52 |
19.8 |
14.3 |
|
4.000 |
95.3 |
101.60 |
124.5 |
127 |
96.3 |
117.48 |
52 |
19.8 |
14.3 |
|
4.125 |
98.4 |
104.78 |
127.7 |
131 |
99.5 |
120.65 |
52 |
19.8 |
14.3 |
|
4.250 |
101.6 |
107.95 |
130.8 |
134 |
102.7 |
123.83 |
52 |
19.8 |
14.3 |
|
4.375 |
104.8 |
111.13 |
134.0 |
137 |
106.3 |
130.18 |
52 |
19.8 |
14.3 |
|
4.500 |
108.0 |
114.30 |
137.2 |
140 |
109.5 |
133.35 |
52 |
19.8 |
14.3 |
|
4.625 |
108.0 |
117.48 |
149.9 |
153 |
109.5 |
133.35 |
64 |
19.8 |
15.9 |
|
4.750 |
111.1 |
120.65 |
153.1 |
156 |
112.7 |
136.35 |
64 |
19.8 |
15.9 |
|
4.875 |
114.3 |
123.83 |
156.2 |
159 |
115.9 |
139.70 |
64 |
19.8 |
15.9 |
|
5.000 |
117.5 |
127.00 |
159.4 |
165 |
119.0 |
142.88 |
64 |
19.8 |
15.9 |
|
5.125 |
120.7 |
130.18 |
162.6 |
168 |
122.2 |
146.05 |
64 |
19.8 |
15.9 |
|
5.250 |
123.8 |
133.35 |
165.8 |
172 |
125.4 |
149.23 |
64 |
19.8 |
15.9 |
|
5.375 |
127.0 |
136.53 |
168.9 |
175 |
128.6 |
152.40 |
64 |
19.8 |
15.9 |
|
5.500 |
130.2 |
139.70 |
172.1 |
178 |
131.7 |
155.58 |
64 |
19.8 |
15.9 |
|
5.625 |
133.4 |
142.88 |
175.3 |
181 |
134.9 |
158.75 |
64 |
19.8 |
15.9 |
|
5.750 |
136.5 |
146.05 |
178.5 |
184 |
138.1 |
161.93 |
64 |
19.8 |
15.9 |
|
5.875 |
139.7 |
149.23 |
181.6 |
187 |
141.3 |
165.10 |
64 |
19.8 |
15.9 |
|
6.000 |
142.9 |
152.40 |
184.8 |
191 |
\ |
\ |
64 |
\ |
15.9 |
