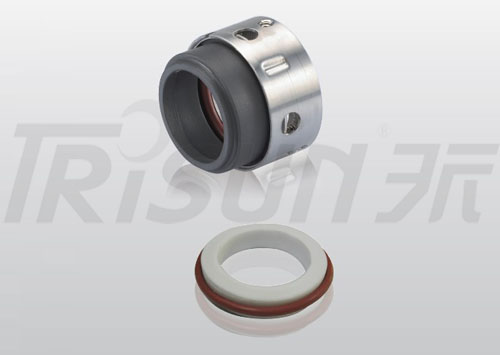

TS 8-B1 车制机械密封件 替换 AESSEAL M02S和克兰 8B1
TS 8-B1 技术参数： 压力：2.5Mpa 线速度：25m/s 温度：-20℃～+200℃ 静环型式： TS8-B1标准配P静环 动环(石墨/碳化硅/碳化钨） 静环(99瓷/碳化硅/碳化钨） 辅助...
我们在这里专业解决你的问题
马上联系我们吧
- 电话:0086-21-58355541
- 传真:0086-21-58353141
- 邮箱: trisun24@trisunltd.com（销售）
TS 8-B1
技术参数：
压力：≤2.5Mpa
线速度：≤25m/s
温度：-20℃～+200℃
静环型式：
TS8-B1标准配P静环
动环(石墨/碳化硅/碳化钨）
静环(99瓷/碳化硅/碳化钨）
辅助密封(丁腈胶/氟胶/包覆圈)
弹簧及其它金属件(不锈钢）
结构特点：
1、采用“○”形圈结构，可适用于多种流体，动环通过卡环连接为整体。
2、可应用于各种旋转设备，如离心泵,搅拌器、搅拌式轧碎机。
3、机械式驱动，减少轴和轴套的磨损
4、多弹簧平衡型；符合API610标准.
|

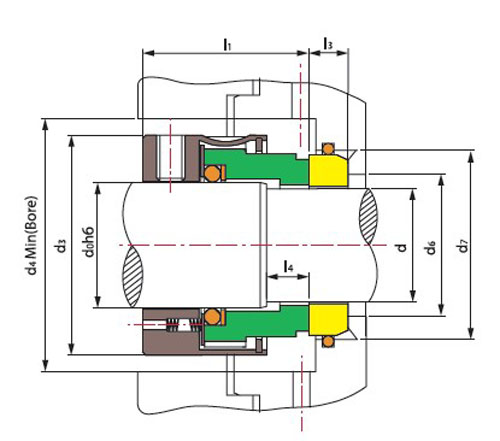

Seal size |
d |
d0 |
d3 |
d4 |
d6 |
d7 |
l1 |
l3 |
l4 |
|
0.625 |
12.7 |
15.87 |
30.8 |
34 |
14.5 |
25.60 |
27.0 |
7.90 |
7.5 |
|
0.750 |
15.9 |
19.05 |
34.0 |
37 |
17.5 |
31.95 |
30.0 |
10.30 |
7.8 |
|
0.875 |
19.1 |
22.22 |
37.2 |
40 |
21.0 |
35.12 |
32.0 |
10.30 |
8.0 |
|
1.000 |
22.2 |
25.40 |
40.3 |
43 |
24.0 |
38.30 |
33.0 |
10.30 |
8.0 |
|
1.125 |
25.4 |
28.58 |
43.4 |
46 |
27.5 |
41.48 |
35.0 |
11.15 |
7.9 |
|
1.250 |
28.6 |
31.75 |
48.3 |
51 |
30.5 |
44.65 |
35.0 |
11.15 |
7.9 |
|
1.375 |
28.6 |
34.93 |
51.3 |
54 |
30.5 |
44.65 |
37.0 |
11.15 |
8.7 |
|
1.500 |
31.8 |
38.10 |
54.5 |
58 |
33.5 |
47.83 |
37.0 |
11.15 |
8.7 |
|
1.625 |
34.9 |
41.28 |
60.8 |
64 |
37.5 |
51.00 |
45.0 |
11.15 |
8.7 |
|
1.750 |
38.1 |
44.45 |
64.0 |
67 |
40.0 |
54.18 |
45.0 |
11.15 |
9.5 |
|
1.875 |
41.3 |
47.62 |
67.2 |
70 |
43.5 |
60.53 |
45.0 |
12.75 |
9.5 |
|
2.000 |
44.5 |
50.80 |
70.4 |
73 |
46.5 |
63.70 |
45.0 |
12.75 |
9.5 |
|
2.125 |
47.6 |
53.98 |
76.7 |
80 |
49.5 |
66.88 |
52.0 |
12.75 |
11.1 |
|
2.250 |
50.8 |
57.15 |
79.9 |
83 |
53.0 |
70.05 |
52.0 |
12.75 |
11.1 |
|
2.375 |
54.0 |
60.33 |
83.1 |
86 |
56.0 |
76.40 |
52.0 |
14.33 |
11.1 |
|
2.500 |
57.2 |
63.50 |
86.2 |
89 |
59.0 |
79.58 |
52.0 |
14.33 |
11.1 |
|
2.625 |
60.3 |
66.68 |
89.4 |
92 |
62.5 |
82.75 |
52.0 |
14.33 |
11.1 |
|
2.750 |
63.5 |
69.85 |
92.6 |
96 |
65.5 |
85.93 |
52.0 |
14.33 |
11.1 |
|
2.875 |
66.7 |
73.03 |
95.8 |
99 |
68.5 |
85.93 |
52.0 |
15.93 |
11.1 |
|
3.000 |
69.9 |
76.20 |
97.3 |
100 |
72.0 |
89.10 |
52.0 |
15.93 |
11.1 |
|
3.125 |
73.0 |
79.38 |
100.5 |
104 |
75.0 |
95.45 |
52.0 |
15.93 |
11.1 |
|
3.250 |
76.2 |
82.55 |
105.3 |
108 |
78.5 |
98.63 |
52.0 |
15.93 |
14.3 |
|
3.375 |
79.4 |
85.73 |
108.5 |
111 |
81.5 |
101.80 |
52.0 |
19.84 |
14.3 |
|
3.500 |
82.6 |
88.90 |
111.6 |
115 |
84.5 |
104.98 |
52.0 |
19.84 |
14.3 |
|
3.625 |
85.7 |
92.08 |
114.8 |
118 |
88.0 |
108.15 |
52.0 |
19.84 |
14.3 |
|
3.750 |
88.9 |
95.25 |
118.0 |
121 |
91.0 |
111.33 |
52.0 |
19.84 |
14.3 |
|
3.875 |
92.1 |
98.43 |
121.2 |
124 |
94.0 |
114.50 |
52.0 |
19.84 |
14.3 |
|
4.000 |
95.3 |
101.60 |
124.3 |
127 |
97.5 |
117.68 |
52.0 |
19.84 |
14.3 |
|
4.125 |
98.4 |
104.78 |
127.0 |
134 |
100.5 |
120.85 |
52.4 |
19.84 |
14.3 |
|
4.250 |
101.6 |
107.95 |
133.4 |
137 |
103.5 |
124.03 |
52.4 |
19.84 |
14.3 |
|
4.375 |
104.8 |
111.13 |
136.5 |
140 |
107.0 |
130.38 |
52.4 |
19.84 |
14.3 |
|
4.500 |
107.9 |
114.30 |
139.7 |
143 |
110.0 |
133,55 |
52.4 |
19.84 |
14.3 |
|
4.625 |
111.1 |
117.48 |
142.9 |
146 |
110.0 |
133.55 |
52.4 |
19.84 |
15.8 |
|
4.750 |
114.3 |
120.65 |
146.1 |
149 |
113.5 |
136.72 |
52.4 |
19.84 |
15.8 |
|
4.875 |
117.4 |
123.83 |
149.2 |
153 |
116.5 |
139.90 |
52.4 |
19.84 |
15.8 |
|
5.000 |
120.6 |
127.00 |
152.4 |
156 |
119.5 |
143.08 |
52.4 |
19.84 |
15.8 |
|
5.125 |
123.8 |
130.18 |
155.6 |
159 |
122.5 |
146.25 |
52.4 |
19.84 |
15.8 |
|
5.250 |
127.0 |
133.35 |
165.1 |
168 |
126.0 |
149.43 |
60.3 |
19.84 |
15.8 |
|
5.375 |
130.2 |
136.53 |
168.28 |
171.45 |
129.0 |
152.60 |
60.3 |
19.84 |
15.8 |
|
5.500 |
133.3 |
139.70 |
171.5 |
175 |
132.0 |
155.77 |
60.3 |
19.84 |
15.8 |
|
5.625 |
136.5 |
142.88 |
174.6 |
178 |
135.5 |
158.95 |
60.3 |
19.84 |
15.8 |
|
5.750 |
139.7 |
146.05 |
177.8 |
181 |
138.5 |
162.12 |
60.3 |
19.84 |
15.8 |
|
5.875 |
142.9 |
149.23 |
181.0 |
184 |
141.5 |
165.30 |
60.3 |
19.84 |
15.8 |
|
6.000 |
146.0 |
152.40 |
184.2 |
188 |
145.0 |
168.47 |
60.3 |
19.84 |
15.8 |
