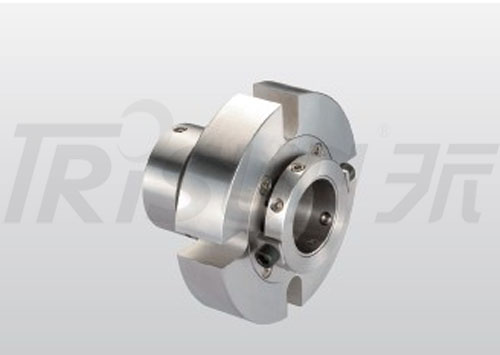

TSSC-B04(TS K1) 单/双端面集装式密封件
TSSC-B04(TS K1) 技术参数 : 力率度 压力：2.5MPa 速率：16m/s 温度：-40℃ ～+220℃ 动环(碳化硅/碳化钨） 静环(碳化硅/碳化钨/石墨） 辅助密封(氟胶/包覆圈/聚四...
我们在这里专业解决你的问题
马上联系我们吧
- 电话:0086-21-58355541
- 传真:0086-21-58353141
- 邮箱: trisun24@trisunltd.com（销售）
|

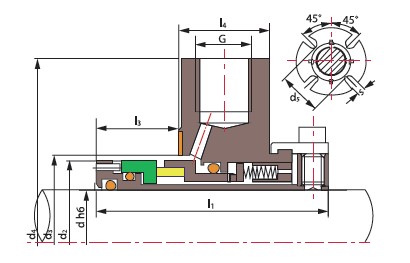

Seal size |
d2 |
d3 |
d4 |
l1 |
l3 |
l4 |
d5 |
S |
G |
|
|
min |
max |
|||||||||
|
25 |
43.0 |
44.0 |
51.0 |
105 |
67 |
24.6 |
25.4 |
62 |
14 |
1/4" |
|
28 |
46.0 |
47.0 |
52.0 |
105 |
67 |
24.6 |
25.4 |
62 |
14 |
1/4" |
|
30 |
48.0 |
49.0 |
56.0 |
105 |
67 |
24.6 |
25.4 |
65 |
14 |
1/4" |
|
33 |
50.0 |
51.0 |
57.0 |
110 |
67 |
24.6 |
25.4 |
67 |
14 |
1/4" |
|
35 |
53.0 |
54.0 |
61.0 |
113 |
67 |
24.6 |
25.4 |
70 |
14 |
1/4" |
|
38 |
56.0 |
57.0 |
66.0 |
123 |
67 |
24.6 |
25.4 |
75 |
14 |
3/8n |
|
40 |
58.0 |
59.0 |
68.0 |
123 |
67 |
24.6 |
25.4 |
75 |
16 |
3/8" |
|
43 |
60.0 |
61.5 |
70.5 |
133 |
67 |
24.6 |
25.4 |
80 |
16 |
3/8" |
|
45 |
62.5 |
64.0 |
73.0 |
138 |
67 |
24.6 |
25.4 |
81 |
16 |
3/8" |
|
48 |
65.5 |
67.0 |
75.0 |
138 |
67 |
24.6 |
25.4 |
84 |
16 |
3/8" |
|
50 |
68.0 |
69.0 |
78.0 |
148 |
67 |
24.6 |
25.4 |
87 |
16 |
3/8" |
|
55 |
73.0 |
74.0 |
83.0 |
148 |
67 |
24.6 |
25.4 |
90 |
18 |
3/8” |
|
60 |
78.0 |
79.0 |
91.0 |
157 |
67 |
24.6 |
25.4 |
102 |
18 |
3/8n |
|
65 |
83.0 |
84.5 |
98.5 |
163 |
67 |
24.6 |
25.4 |
109 |
18 |
3/8" |
|
70 |
93.0 |
95.0 |
108.0 |
178 |
67 |
24.6 |
25.4 |
118 |
18 |
3/8" |
|
75 |
100.0 |
101.6 |
118.0 |
190 |
84 |
26.6 |
28.0 |
129 |
18 |
3/8” |
|
80 |
106.4 |
108.0 |
124.0 |
195 |
84 |
26.6 |
28.0 |
135 |
18 |
3/8” |
|
85 |
109.5 |
111.1 |
128.0 |
198 |
84 |
26.6 |
28.0 |
139 |
22 |
3/8n |
|
90 |
115.9 |
117.5 |
135.0 |
205 |
84 |
26.6 |
28.0 |
145 |
22 |
3/8n |
|
95 |
119.1 |
120.7 |
138.0 |
208 |
84 |
26.6 |
28.0 |
148 |
22 |
3/8n |
|
100 |
125.4 |
127.0 |
144.0 |
218 |
84 |
26.6 |
28.0 |
154 |
22 |
3/8" |
