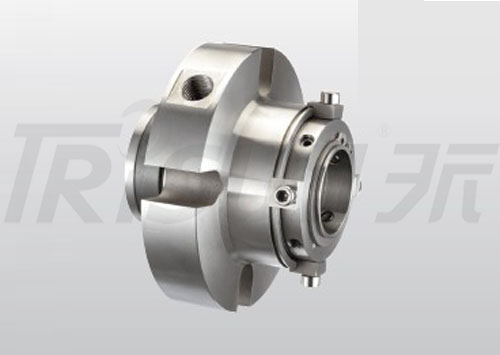

TSDC-B02 单/双端面集装式密封件
TSDC-B02 技术参数： 压力：2.5MPa 速率16m/s 温度；-40℃ ～220℃ 动环(石墨/碳化钨） 静环(碳化硅/碳化钨石墨） 辅助密封(氟橡胶/聚四氟乙烯/包覆圈/NBR) 其它金...
我们在这里专业解决你的问题
马上联系我们吧
- 电话:0086-21-58355541
- 传真:0086-21-58353141
- 邮箱: trisun24@trisunltd.com（销售）

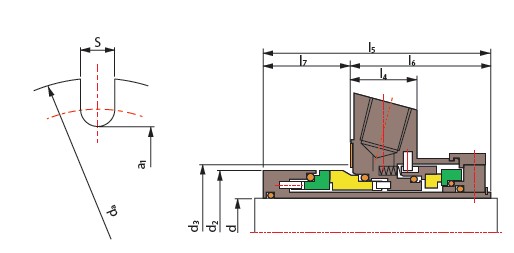

技术参数：
压力：≤2.5MPa
速率≤16m/s
温度；-40℃ ～220℃
动环(石墨/碳化钨）
静环(碳化硅/碳化钨石墨）
辅助密封(氟橡胶/聚四氟乙烯/包覆圈/NBR)
其它金属配件(哈氏-C/Duplex/316)
|
d |
d2 |
d3 |
d3 |
l4 |
l5 |
l6 |
l7 |
a1 |
da |
s |
|
min |
max |
|||||||||
|
25 |
43.0 |
44.0 |
51.5 |
25.4 |
86.5 |
53.4 |
33.1 |
62 |
105 |
13.2 |
|
28 |
46.0 |
47,0 |
52.0 |
25.4 |
86.5 |
53.4 |
33.1 |
62 |
105 |
13.2 |
|
30 |
48.0 |
49.0 |
56.0 |
25.4 |
86.5 |
53.4 |
33.1 |
65 |
105 |
13.2 |
|
32 |
49.8 |
51.0 |
57.0 |
25.4 |
86.5 |
53.4 |
33.1 |
67 |
108 |
13.2 |
|
33 |
49.8 |
51.0 |
57.0 |
25.4 |
86.5 |
53.4 |
33.1 |
67 |
108 |
13.2 |
|
35 |
53.0 |
54.0 |
61.5 |
25.4 |
86.5 |
53.4 |
33.1 |
70 |
113 |
13,2 |
|
38 |
56.0 |
57,0 |
66.0 |
25.4 |
86.5 |
53.4 |
33.1 |
75 |
123 |
13.2 |
|
40 |
58.0 |
59,0 |
68.0 |
25.4 |
86.5 |
53.4 |
33.1 |
75 |
123 |
14.2 |
|
42 |
60.5 |
61.5 |
69.5 |
25.4 |
86.5 |
53.4 |
33.1 |
80 |
133 |
14.2 |
|
43 |
60.5 |
61.5 |
70.5 |
25.4 |
86.5 |
53.4 |
33.1 |
80 |
133 |
14.2 |
|
45 |
62.5 |
64.0 |
73.0 |
25.4 |
86.5 |
53.4 |
33.1 |
81 |
138 |
14.2 |
|
48 |
65.6 |
67.0 |
75.0 |
25.4 |
86.5 |
53.4 |
33.1 |
84 |
138 |
14.2 |
|
50 |
68.0 |
69.0 |
78.0 |
25.4 |
86.5 |
53.4 |
33.1 |
87 |
148 |
14.2 |
|
53 |
72.0 |
73,0 |
87.0 |
25.4 |
86.5 |
53.4 |
33.1 |
97 |
148 |
18.0 |
|
55 |
73.0 |
74.0 |
83.0 |
25.4 |
86.5 |
53.4 |
33.1 |
90 |
148 |
18.0 |
|
60 |
78.0 |
79.0 |
91.0 |
25.4 |
86.5 |
53.4 |
33.1 |
102 |
157 |
18.0 |
|
65 |
84.8 |
85.7 |
98.5 |
25.4 |
86.5 |
53.4 |
33.1 |
109 |
163 |
18.0 |
|
70 |
93.0 |
95.0 |
108.0 |
25.4 |
86.5 |
53.4 |
33.1 |
118 |
178 |
18.0 |
|
75 |
100.0 |
101.6 |
118.0 |
28.0 |
108.0 |
63.9 |
44.1 |
129 |
190 |
18.0 |
|
80 |
106.4 |
108.0 |
124.0 |
28.0 |
108.0 |
63.9 |
44.1 |
135 |
195 |
18.0 |
|
85 |
109.5 |
111.1 |
128.0 |
28.0 |
108.0 |
63.9 |
44.1 |
139 |
198 |
22.0 |
|
90 |
115.9 |
117.5 |
135.0 |
28.0 |
108.0 |
63.9 |
44.1 |
145 |
205 |
22.0 |
|
95 |
119.1 |
120.7 |
138.0 |
28.0 |
108.0 |
63.9 |
44.1 |
148 |
208 |
22.0 |
|
100 |
125.4 |
127.0 |
144.0 |
28.0 |
108.0 |
63.9 |
44.1 |
154 |
218 |
22.0 |
|
d |
d2 |
d3 |
d3 |
l4 |
l5 |
l6 |
l7 |
a1 |
da |
s |
|
min |
max |
|||||||||
|
1.000 |
1.693 |
1.750 |
2.000 |
1.000 |
3.400 |
2,102 |
1.303 |
2.440 |
4.134 |
0.520 |
|
1.125 |
1.811 |
1.875 |
2.050 |
1.000 |
3.400 |
2.102 |
1.303 |
2.440 |
4.134 |
0.520 |
|
1.250 |
1.960 |
2.000 |
2.250 |
1.000 |
3.400 |
2.102 |
1.303 |
2.640 |
4.330 |
0.520 |
|
1.375 |
2.086 |
2.125 |
2.420 |
1.000 |
3.400 |
2.102 |
1.303 |
2.750 |
4.449 |
0.520 |
|
1.500 |
2.200 |
2.000 |
2.625 |
1.000 |
3.400 |
2.102 |
1.303 |
2.950 |
4.842 |
0.520 |
|
1.625 |
2.340 |
2.250 |
2.700 |
1.000 |
3.400 |
2.102 |
1.303 |
3,030 |
4.842 |
0.599 |
|
1.750 |
2.460 |
2.375 |
2.812 |
1.000 |
3.400 |
2.102 |
1.303 |
3.190 |
5.433 |
0.599 |
|
1.875 |
2.582 |
2.500 |
2.940 |
1.000 |
3.400 |
2.102 |
1.303 |
3.190 |
5.433 |
0.599 |
|
2.000 |
2.677 |
2.625 |
3.190 |
1.000 |
3.400 |
2.102 |
1.303 |
3.430 |
5.827 |
0.599 |
|
2.125 |
2.834 |
2,750 |
3.437 |
1.000 |
3.400 |
2.102 |
1.303 |
3.820 |
5.827 |
0.709 |
|
2.250 |
2.960 |
2.875 |
3.560 |
1.000 |
3.400 |
2.102 |
1.303 |
3.940 |
6.181 |
0.709 |
|
2,375 |
3.070 |
3.000 |
3.590 |
1.000 |
3.400 |
2.102 |
1.303 |
4.020 |
6.181 |
0.709 |
|
2.500 |
3.212 |
3.125 |
3.800 |
1.000 |
3.400 |
2.102 |
1.303 |
4.170 |
6.417 |
0.709 |
|
2.625 |
3.338 |
3.250 |
3.937 |
1.000 |
3.400 |
2.102 |
1.303 |
4.290 |
6.417 |
0.709 |
|
2.750 |
3.660 |
3.375 |
4.250 |
1.000 |
3.400 |
2.102 |
1.303 |
4.650 |
7.008 |
0.709 |
|
2.875 |
3.811 |
3.875 |
4.567 |
1.000 |
4.250 |
2.516 |
1.736 |
4.960 |
7.283 |
0.709 |
|
3.000 |
3.937 |
4.000 |
4,646 |
1.102 |
4.250 |
2.516 |
1.736 |
5.079 |
7.460 |
0.709 |
|
3.125 |
4.063 |
4.125 |
4.764 |
1.102 |
4.250 |
2.516 |
1.736 |
5.197 |
7,677 |
0.709 |
|
3.250 |
4.189 |
4.250 |
4.882 |
1.102 |
4.250 |
2.516 |
1.736 |
5315 |
7.677 |
0.709 |
|
3.375 |
4.311 |
4.375 |
5.039 |
1.102 |
4.250 |
2.516 |
1.736 |
5.472 |
7.795 |
0.866 |
|
3.500 |
4.437 |
4.500 |
5.157 |
1.102 |
4.250 |
2.516 |
1.736 |
5391 |
7.795 |
0.866 |
|
3,625 |
4.563 |
4.625 |
5.315 |
1.102 |
4.250 |
2.516 |
1.736 |
5.709 |
8.071 |
0.866 |
|
3,750 |
4.689 |
4.750 |
4,433 |
1.102 |
4.250 |
2.516 |
1.736 |
5*827 |
8.189 |
0.866 |
|
4.000 |
4.937 |
5.000 |
5.669 |
1.102 |
4.250 |
2.516 |
1.736 |
6.063 |
8.583 |
0.866 |
