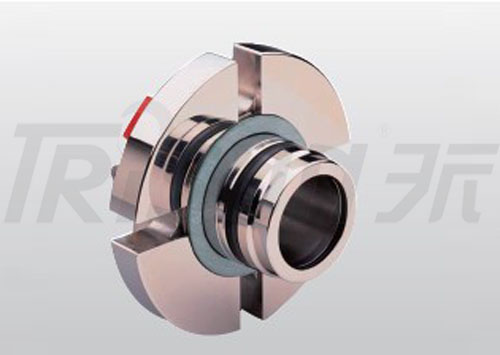

TSDC-A03 单/双端面集装式密封件
TSDC-A03 技术参数: 压力：2.1 MPa 速率：25m/s 温度：-40℃～204℃ 动环(石墨/碳化硅/碳化钨） 静环(碳化硅/碳化钨） 辅助密封(氟胶/三元乙丙胶/Kalrez) 弹簧及其...
我们在这里专业解决你的问题
马上联系我们吧
- 电话:0086-21-58355541
- 传真:0086-21-58353141
- 邮箱: trisun24@trisunltd.com（销售）
技术参数:
压力：≤2.1 MPa
速率：≤25m/s
温度：-40℃～204℃
动环(石墨/碳化硅/碳化钨）
静环(碳化硅/碳化钨）
辅助密封(氟胶/三元乙丙胶/Kalrez)
弹簧及其它金属配件(哈氏-C/Duplex/316)
|

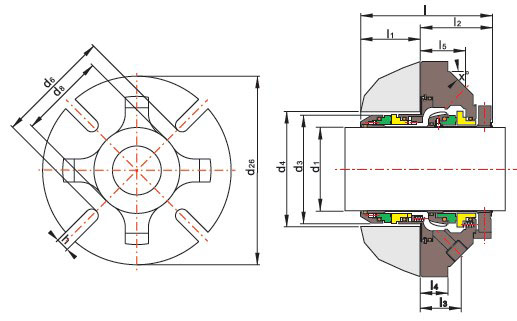

Seal Size |
d1 |
d2 |
d4 |
d6 |
d8 |
d26 |
1 |
l1 |
l2 |
l3 |
l4 |
l5 |
h |
x |
|
|
min |
max |
||||||||||||||
|
24 |
24 |
40.8 |
43.0 |
48.0 |
57.7 |
50.4 |
105.0 |
92.0 |
53.1 |
38.9 |
28.2 |
19.2 |
29.2 |
14.0 |
20。 |
|
25 |
25 |
41.8 |
44.0 |
51.0 |
62.0 |
51.0 |
105.0 |
92.0 |
53.1 |
38.9 |
27.8 |
19.2 |
29.2 |
14.0 |
20° |
|
28 |
28 |
45.4 |
47.0 |
54.0 |
65.0 |
55.5 |
111.0 |
92.0 |
53.1 |
38.9 |
27.5 |
19.2 |
29.4 |
14.0 |
20° |
|
30 |
30 |
46.8 |
49.0 |
54.0 |
64.6 |
56.4 |
105.0 |
92.0 |
53.1 |
38.9 |
27.4 |
19.2 |
29.7 |
14.0 |
20° |
|
32 |
32 |
49.8 |
51.0 |
57.0 |
66.5 |
59.4 |
105.0 |
92.0 |
53.1 |
38.9 |
28.4 |
21.5 |
30.9 |
14.0 |
25。 |
|
33 |
33 |
49.8 |
51.0 |
57.0 |
66.5 |
59.4 |
105.0 |
92.0 |
53.1 |
38.9 |
28.4 |
21.5 |
30.9 |
14.0 |
25。 |
|
35 |
35 |
51.8 |
53.0 |
59.0 |
68.5 |
61.4 |
120.0 |
92.0 |
53.1 |
38.9 |
29.3 |
20.7 |
29.3 |
14.0 |
15° |
|
40 |
40 |
57.6 |
59.0 |
70.5 |
80.7 |
70.8 |
135.0 |
93.2 |
53.1 |
40.1 |
30.1 |
21.3 |
30.1 |
14.0 |
20° |
|
43 |
43 |
58.6 |
61.0 |
70.5 |
80.7 |
70.8 |
135.0 |
93.2 |
53.1 |
40.1 |
26.7 |
21.3 |
29.8 |
14.0 |
15° |
|
45 |
45 |
62.0 |
64.0 |
75 |
84.6 |
73.8 |
139.0 |
93.2 |
53.1 |
40.1 |
30.5 |
21.9 |
30.5 |
14.0 |
20° |
|
50 |
50 |
68.0 |
70.0 |
78.0 |
87.6 |
78.9 |
150.0 |
93.2 |
53.1 |
40.1 |
30.5 |
21.6 |
30.5 |
17.5 |
20° |
|
53 |
53 |
71.6 |
73.0 |
87.0 |
97.0 |
85.0 |
150.0 |
93.2 |
53.1 |
40.1 |
25.7 |
21.3 |
29.5 |
17.5 |
15。 |
|
55 |
55 |
71.6 |
73.0 |
87.0 |
97.0 |
85.0 |
150.0 |
93.2 |
53.1 |
40.1 |
25.7 |
21.3 |
29.5 |
17.5 |
15° |
|
60 |
60 |
77.9 |
80.0 |
92.0 |
102.4 |
88.0 |
164.5 |
93.2 |
53.1 |
40.1 |
30.5 |
21.6 |
30.5 |
17.5 |
20° |
|
63 |
63 |
81.1 |
83.0 |
98.5 |
108.7 |
94.4 |
171.0 |
93.2 |
53.1 |
40.1 |
29.8 |
21.6 |
29.8 |
17.5 |
15。 |
|
65 |
65 |
84.3 |
86.0 |
98.5 |
108.7 |
94.4 |
171.0 |
93.2 |
53.1 |
40.1 |
29.4 |
21.3 |
29.4 |
17.5 |
15° |
|
70 |
70 |
87.4 |
89.0 |
100.0 |
112.0 |
98.3 |
180.5 |
93.2 |
53.1 |
40.1 |
29.7 |
21.3 |
29.7 |
17.5 |
20° |
|
75 |
75 |
98.0 |
101.6 |
117.5 |
131.4 |
116.5 |
189.3 |
115.9 |
63.5 |
52.4 |
25.0 |
25.8 |
36.3 |
17.5 |
20° |
|
80 |
80 |
104.4 |
108.0 |
127.0 |
142.5 |
126.0 |
201.9 |
115.9 |
63.5 |
52.4 |
25.0 |
25.8 |
36.3 |
21.0 |
20° |
|
85 |
85 |
107.6 |
111.1 |
127.0 |
142.5 |
126.0 |
201.9 |
115.9 |
63.5 |
52.4 |
25.0 |
25.8 |
36.3 |
21.0 |
20° |
|
90 |
90 |
113.9 |
117.5 |
136.5 |
152.0 |
135.5 |
214.6 |
115.9 |
63.5 |
52.4 |
26.2 |
25.8 |
36.3 |
21.0 |
20° |
|
95 |
95 |
117.1 |
120.0 |
136.5 |
152.0 |
135.5 |
214.6 |
115.9 |
63.5 |
52.4 |
26.2 |
25.8 |
36.3 |
21.0 |
20° |
|
100 |
100 |
123.4 |
127.0 |
139.7 |
155.2 |
138.7 |
227.3 |
115.9 |
63.5 |
52.4 |
26.2 |
25.8 |
36.3 |
21.0 |
20° |
|
105 |
105 |
129.8 |
133.4 |
152.4 |
167.9 |
151.4 |
240.0 |
115.9 |
63.5 |
52.4 |
36.0 |
23.8 |
40.1 |
21.0 |
45° |
|
110 |
110 |
136.1 |
139.7 |
152.4 |
167.9 |
151.4 |
240.0 |
115.9 |
63.5 |
52.4 |
36.0 |
23.8 |
40.1 |
21.0 |
45° |
|
115 |
115 |
142.5 |
146.1 |
165.1 |
180.6 |
164.1 |
252.7 |
115.9 |
63.5 |
52.4 |
36.0 |
23.8 |
40.1 |
24.0 |
45° |
|
120 |
120 |
142.5 |
146.1 |
165.1 |
180.6 |
164.1 |
252.7 |
115.9 |
63.5 |
52.4 |
36.0 |
23.8 |
40.1 |
24.0 |
45° |
|
125 |
125 |
148.8 |
152.4 |
165.1 |
180.6 |
164.1 |
252.7 |
115.9 |
63.5 |
52.4 |
36.0 |
23.8 |
40.1 |
24.0 |
45° |
|
Seal Size |
d1 |
d2 |
d4 |
d6 |
d8 |
d26 |
1 |
l1 |
l2 |
l3 |
l4 |
l5 |
h |
x |
|
|
min |
max |
||||||||||||||
|
1.000 |
1.000 |
1.646 |
1.750 |
2.000 |
2.441 |
2.008 |
4.134 |
3.622 |
2.091 |
1.531 |
1.093 |
0.755 |
1.150 |
0.551 |
20° |
|
1.125 |
1.125 |
1.786 |
1.875 |
2.125 |
2.559 |
2.183 |
4.375 |
3.622 |
2.091 |
1.531 |
1.084 |
0.755 |
1.159 |
0.551 |
20° |
|
1.250 |
1.250 |
1.961 |
2.000 |
2.250 |
2.618 |
2.340 |
4.134 |
3.622 |
2.091 |
1.531 |
1.120 |
0.847 |
1.215 |
0.551 |
25° |
|
1.375 |
1.375 |
2.040 |
2,125 |
2312 |
2:697 |
2.418 |
4.725 |
3.622 |
2.091 |
1.531 |
1.154 |
0.815 |
1.154 |
0.551 |
15° |
|
1.500 |
1.500 |
2.192 |
2.250 |
2.750 |
3.177 |
2.786 |
5.315 |
3.622 |
2.091 |
1.531 |
1.185 |
0.837 |
1.185 |
0.551 |
20° |
|
1.625 |
1.625 |
2.317 |
2375 |
2.750 |
3:177 |
2.786 |
5.315 |
3.671 |
2.091 |
1.580 |
1.052 |
0.841 |
1.173 |
0.551 |
15° |
|
1.750 |
1.750 |
2.442 |
2.500 |
2.937 |
3.337 |
2.907 |
5.475 |
3.671 |
2.091 |
1.580 |
1.200 |
0.862 |
1.200 |
0.551 |
20° |
|
1.875 |
1.875 |
2.567 |
2.625 |
2.937 |
3.297 |
2.982 |
5.475 |
3.671 |
2.091 |
1.580 |
1.152 |
0.837 |
1.175 |
0.551 |
20° |
|
2.000 |
2.000 |
2.677 |
2.750 |
3.062 |
3.450 |
3.108 |
5.906 |
3.671 |
2.091 |
1.580 |
1.200 |
0.852 |
1.200 |
0.689 |
20° |
|
2.125 |
2.125 |
2.817 |
2.875 |
3.437 |
3.819 |
3.346 |
5.906 |
3.671 |
2.091 |
1.580 |
1.013 |
0.840 |
1.163 |
0.689 |
15° |
|
2.250 |
2.250 |
2.942 |
3.000 |
3.625 |
4.030 |
3.466 |
5.906 |
3.671 |
2.091 |
1.580 |
1.185 |
0.837 |
1.185 |
0.689 |
20° |
|
2.375 |
2.375 |
3.067 |
3.125 |
3.625 |
4.030 |
3.466 |
6.475 |
3.671 |
2.091 |
1.580 |
1.200 |
0.852 |
1.200 |
0.689 |
20° |
|
2.500 |
2.500 |
3.192 |
3.250 |
3.875 |
4.280 |
3.716 |
6.725 |
3.671 |
2.091 |
1.580 |
1.173 |
0.852 |
1.173 |
0.689 |
15° |
|
2.625 |
2.625 |
3.317 |
3.375 |
3.875 |
4.280 |
3.716 |
6.725 |
3.671 |
2.091 |
1.580 |
1.158 |
0.837 |
1.158 |
0.689 |
15° |
|
2.875 |
2.875 |
3.735 |
3.875 |
4.625 |
5.173 |
4.585 |
7.450 |
4.562 |
2.500 |
2.062 |
0.986 |
1.014 |
1.429 |
0.689 |
20° |
|
3.000 |
3.000 |
3.860 |
4.000 |
4.625 |
5.173 |
4.585 |
7.450 |
4.562 |
2.500 |
2.062 |
0.986 |
1.014 |
1.429 |
0.689 |
20° |
|
3.125 |
3.125 |
3.985 |
4.125 |
4.625 |
5.173 |
4.585 |
7.450 |
4.562 |
2.500 |
2.062 |
0.986 |
1.014 |
1.429 |
0.689 |
20° |
|
3.250 |
3.250 |
4.110 |
4.250 |
5.000 |
5.610 |
4.960 |
7.950 |
4.562 |
2.500 |
2.062 |
0.986 |
1.014 |
1.429 |
0.827 |
20° |
|
3.375 |
3.375 |
4.235 |
4.375 |
5.000 |
5.610 |
4.960 |
7.950 |
4.562 |
2.500 |
2.062 |
0.986 |
1.014 |
1.429 |
0.827 |
20° |
|
3.500 |
3.500 |
4.360 |
4.500 |
5.000 |
5.610 |
4.960 |
7.950 |
4.562 |
2.500 |
2.062 |
0.986 |
1.014 |
1.429 |
0.827 |
20° |
|
3.625 |
3.625 |
4.485 |
4.625 |
5.375 |
5.985 |
5.335 |
8.450 |
4.562 |
2.500 |
2.062 |
1.033 |
1.014 |
1.429 |
0.827 |
20° |
|
3.750 |
3.750 |
4.610 |
4.750 |
5.375 |
5.985 |
5.335 |
8.450 |
4.562 |
2.500 |
2.062 |
1.033 |
1.014 |
1.429 |
0.827 |
20° |
|
3.875 |
3.875 |
4.860 |
5.000 |
5.500 |
6.110 |
5.460 |
8.950 |
4.562 |
2.500 |
2.062 |
1.033 |
1.014 |
1.429 |
0.827 |
20° |
|
4.000 |
4.000 |
4.860 |
5.000 |
5.500 |
6.110 |
5.460 |
8.950 |
4.562 |
2.500 |
2.062 |
1.033 |
1.014 |
1.429 |
0.827 |
20° |
|
4.125 |
4.125 |
5.110 |
5.250 |
6.000 |
6.610 |
5.960 |
9.450 |
4.562 |
2.500 |
2.062 |
1.418 |
0.937 |
1.578 |
0.827 |
45° |
|
4.250 |
4.250 |
5.110 |
5.250 |
6.000 |
6.610 |
5.960 |
9.450 |
4.562 |
2.500 |
2.062 |
1.418 |
0.937 |
1.578 |
0.827 |
45° |
|
4.375 |
4.375 |
5.360 |
5，500 |
6,000 |
6.610 |
5.960 |
9.450 |
4.562 |
2.500 |
2.062 |
1.418 |
0.937 |
1.578 |
0.827 |
45° |
|
4.500 |
4.500 |
5.360 |
5.500 |
6.000 |
6.610 |
5.960 |
9.450 |
4.562 |
2.500 |
2.062 |
1.418 |
0.937 |
1.578 |
0.827 |
45° |
|
4.625 |
4.625 |
5.610 |
5.750 |
6.500 |
7.110 |
6.460 |
9.950 |
4.562 |
2.500 |
2.062 |
1.418 |
0.937 |
1.578 |
0.945 |
45° |
|
4.750 |
4.750 |
5.610 |
5.750 |
6.500 |
7.110 |
6.460 |
9.950 |
4.562 |
2.500 |
2.062 |
1.418 |
0.937 |
1.578 |
0.945 |
45° |
|
4.875 |
4.875 |
5.860 |
6.000 |
6.500 |
7.110 |
6.460 |
9.950 |
4.562 |
2.500 |
2.062 |
1.418 |
0.937 |
1.578 |
0.945 |
45° |
|
5.000 |
5.000 |
5.860 |
6.000 |
6.500 |
7.110 |
6.460 |
9.950 |
4.562 |
2.500 |
2.062 |
1.418 |
0.937 |
1.578 |
0.945 |
45° |
