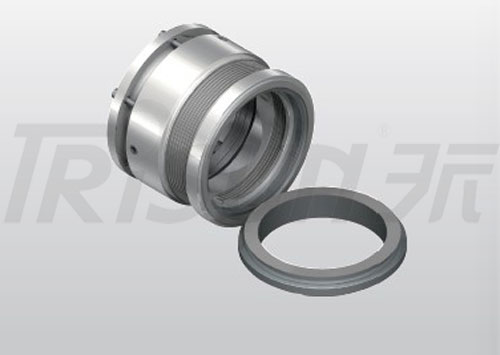

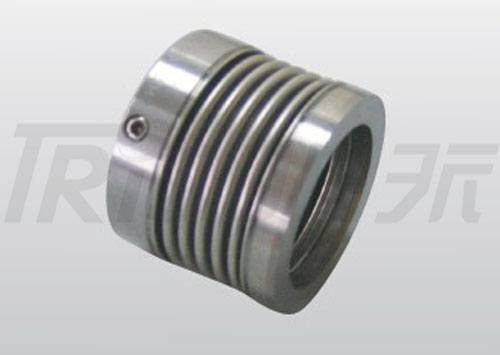

TSMB-B04
技术参数：
压力：≤2.5MPa
速率：≤20m/s
温度：-40℃～+220℃
动环(碳化硅/石墨/碳化钨）
静环(碳化硅/石墨/碳化钨）
辅助密封(柔性石墨）金属波纹管
(SUS316L/AM350/Inconel718/钛材/哈氏C/合金20)
其它部件(不锈钢/钛材/哈氏-C)
|

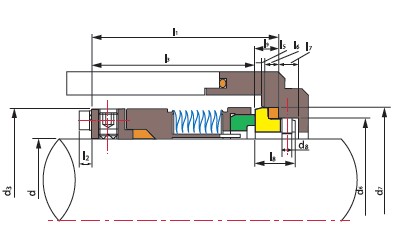

d |
d3 |
d6 |
d7 |
d8 |
l1 |
l3 |
l5 |
l6 |
l7 |
l8 |
l9 |
l2 |
|
16 |
38 |
29.0 |
35.0 |
3 |
58.0 |
46.5 |
2.0 |
5 |
9 |
19.5 |
11.5 |
5 |
|
18 |
40 |
31.0 |
37.0 |
3 |
58.0 |
46.5 |
2.0 |
5 |
9 |
19.5 |
11.5 |
5 |
|
20 |
42 |
34.0 |
40.0 |
3 |
58.0 |
46.5 |
2.0 |
5 |
9 |
19.5 |
11.5 |
5 |
|
22 |
44 |
37.0 |
43.0 |
3 |
58.0 |
46.5 |
2.0 |
5 |
9 |
19.5 |
11.5 |
5 |
|
24 |
46 |
37.0 |
43.0 |
3 |
58.0 |
46.5 |
2.0 |
5 |
9 |
19.5 |
11.5 |
5 |
|
25 |
47 |
39.0 |
45.0 |
3 |
58.0 |
46.5 |
2.0 |
5 |
9 |
19.5 |
11.5 |
5 |
|
28 |
50 |
42.0 |
48.0 |
3 |
58.0 |
46.5 |
2.0 |
5 |
9 |
19.5 |
11.5 |
5 |
|
30 |
52 |
44.0 |
50.0 |
3 |
58.0 |
46.5 |
2.0 |
5 |
9 |
19.5 |
11.5 |
5 |
|
32 |
54 |
49.0 |
56.0 |
4 |
60.5 |
46.5 |
2.0 |
6 |
9 |
22.0 |
14.0 |
5 |
|
33 |
55 |
49.0 |
56.0 |
4 |
60.5 |
46.5 |
2.0 |
6 |
9 |
22.0 |
14.0 |
5 |
|
35 |
57 |
51.0 |
58.0 |
4 |
60.5 |
46.5 |
2.0 |
6 |
9 |
22.0 |
14.0 |
5 |
|
38 |
60 |
54.0 |
61.0 |
4 |
60.5 |
46.5 |
2.0 |
6 |
9 |
22.0 |
14.0 |
5 |
|
40 |
66 |
56.0 |
63.0 |
4 |
61.5 |
47.5 |
2.0 |
6 |
9 |
22.0 |
14.0 |
6 |
|
43 |
69 |
59.0 |
66.0 |
4 |
61.5 |
47.5 |
2.0 |
6 |
9 |
22.0 |
14.0 |
6 |
|
45 |
71 |
62.0 |
70.0 |
4 |
62.5 |
47.5 |
2.5 |
6 |
9 |
23.0 |
15.0 |
6 |
|
48 |
74 |
65.0 |
73.0 |
4 |
62.5 |
47.5 |
2.5 |
6 |
9 |
23.0 |
15.0 |
6 |
|
50 |
76 |
67.0 |
75.0 |
4 |
62.5 |
47.5 |
2.5 |
6 |
9 |
23.0 |
15.0 |
6 |
|
53 |
79 |
70.0 |
78.0 |
4 |
62.5 |
47.5 |
2.5 |
6 |
9 |
23.0 |
15.0 |
6 |
|
55 |
81 |
72.0 |
80.0 |
4 |
62.5 |
47.5 |
2.5 |
6 |
9 |
23.0 |
15.0 |
6 |
|
58 |
85 |
75.0 |
83.0 |
4 |
68.0 |
53.0 |
2.5 |
6 |
9 |
23.0 |
15.0 |
6 |
|
60 |
87 |
77.0 |
85.0 |
4 |
68.0 |
53.0 |
2.5 |
6 |
9 |
23.0 |
15.0 |
6 |
|
63 |
90 |
81.0 |
90.0 |
4 |
71.0 |
53.0 |
2.5 |
7 |
9 |
26.0 |
18.0 |
6 |
|
65 |
92 |
83.0 |
92.0 |
4 |
71.0 |
53.0 |
2.5 |
7 |
9 |
26.0 |
18.0 |
6 |
|
68 |
95 |
88.0 |
97.0 |
4 |
71.0 |
53.0 |
2.5 |
7 |
9 |
26.0 |
18.0 |
6 |
|
70 |
97 |
88.0 |
97.0 |
4 |
71.0 |
53.0 |
2.5 |
7 |
9 |
26.0 |
18.0 |
6 |
|
75 |
102 |
95.0 |
105.0 |
4 |
71.0 |
52.8 |
3.0 |
7 |
9 |
26.2 |
18.2 |
6 |
|
80 |
107 |
100.0 |
110.0 |
4 |
71.0 |
52.8 |
3.0 |
7 |
9 |
26.2 |
18.2 |
6 |
|
85 |
112 |
105.0 |
115.0 |
4 |
71.0 |
52.8 |
3.0 |
7 |
9 |
26.2 |
18.2 |
6 |
|
90 |
117 |
110.0 |
120.0 |
4 |
71.0 |
53.8 |
3.0 |
7 |
9 |
25.2 |
17.2 |
6 |
|
95 |
122 |
115.0 |
125.0 |
4 |
71.0 |
53.8 |
3.0 |
7 |
9 |
25.2 |
17.2 |
6 |
|
100 |
127 |
122.2 |
134.3 |
5 |
74.0 |
54.0 |
3.0 |
9 |
11 |
30.0 |
20.0 |
6 |
