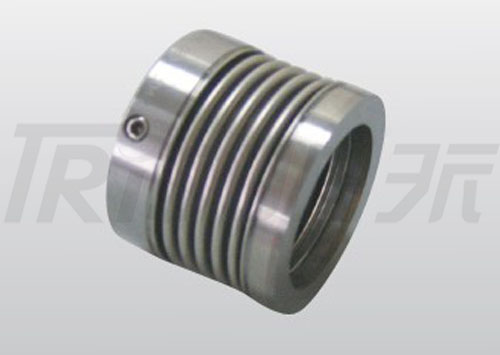

TSMB-PZ02 金属波纹管密封件
TSMB-PZ02 技术参数： 压力：2MPa 速率：25m/s 温度：-40℃～+200℃ 动环(石墨/碳化硅/无压碳化硅/碳化钨） 静环(石墨/碳化硅/无压碳化钨） 膨胀金属波纹管(S...
我们在这里专业解决你的问题
马上联系我们吧
- 电话:0086-21-58355541
- 传真:0086-21-58353141
- 邮箱: trisun24@trisunltd.com（销售）
TSMB-PZ02
技术参数：
压力：≤2MPa
速率：≤25m/s
温度：-40℃～+200℃
动环(石墨/碳化硅/无压碳化硅/碳化钨）
静环(石墨/碳化硅/无压碳化钨）
膨胀金属波纹管(SUS304/SUS316/AM350/Inconel718/钛材/哈氏C/合金20)
其它部件(不锈钢/钛材/哈氏-C)
|

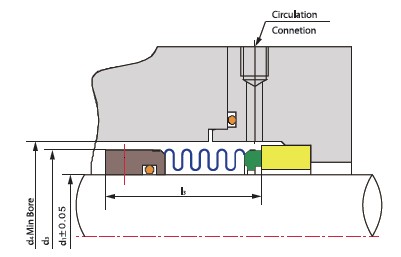

seal size |
d1 |
d3 |
d4 |
l3 |
|
0.750 |
19,05 |
31.00 |
34.90 |
31.50 |
|
0.875 |
22.23 |
36.00 |
38.10 |
37.00 |
|
1.000 |
25.40 |
39.00 |
41.30 |
37.50 |
|
1.125 |
28.58 |
42.00 |
44.50 |
38.00 |
|
1.250 |
31.75 |
46.00 |
47.60 |
43.00 |
|
1.375 |
34.93 |
48.50 |
50.80 |
43.00 |
|
1.500 |
38.10 |
51,50 |
57.20 |
42.00 |
|
1.625 |
41.28 |
58.40 |
60.30 |
47.00 |
|
1.750 |
44.45 |
58.40 |
63.50 |
47.00 |
|
1.875 |
47.63 |
63.70 |
66.70 |
46.50 |
|
2.000 |
50.80 |
63.70 |
69.90 |
46.50 |
|
2.125 |
53.98 |
69.00 |
73.00 |
56.50 |
|
2.250 |
57.15 |
73.30 |
76.20 |
56.50 |
|
2.375 |
60.33 |
76.70 |
79.40 |
56.50 |
|
2.500 |
63.50 |
79.40 |
82.60 |
56.50 |
|
2.625 |
66.68 |
83.00 |
85.70 |
66.50 |
|
2.750 |
69.85 |
87.80 |
96.00 |
65.50 |
|
2.875 |
73.02 |
94.00 |
99.00 |
65.50 |
|
3.000 |
76.20 |
94.00 |
100.00 |
65.50 |
|
3.125 |
79.37 |
100.60 |
104.00 |
75.00 |
|
3.250 |
82.55 |
100.60 |
108.00 |
75.00 |
|
3.375 |
85.72 |
106.00 |
111.00 |
75.00 |
|
3.500 |
88.90 |
110.30 |
115.00 |
75.00 |
|
3.625 |
92.07 |
114.90 |
118.00 |
75.00 |
|
3.750 |
95.25 |
114.90 |
121.00 |
75.00 |
|
3.875 |
98.42 |
121.30 |
124.00 |
75.00 |
|
4.000 |
101.60 |
121.30 |
127.00 |
75.00 |
|
seal size |
d1 |
d3 |
d4 |
l3 |
|
18 |
18 |
31.0 |
34 |
31.5 |
|
20 |
20 |
31.0 |
36 |
31.5 |
|
22 |
22 |
31.0 |
38 |
31.5 |
|
24 |
24 |
36.0 |
40 |
36.7 |
|
25 |
25 |
36.0 |
41 |
37.0 |
|
28 |
28 |
39.0 |
44 |
37.5 |
|
30 |
30 |
42.0 |
46 |
38.0 |
|
32 |
32 |
46.0 |
48 |
43.0 |
|
33 |
33 |
46.0 |
49 |
43.0 |
|
35 |
35 |
48.5 |
51 |
43.0 |
|
38 |
38 |
51.5 |
58 |
42.0 |
|
40 |
40 |
54.0 |
60 |
42.0 |
|
43 |
43 |
58.4 |
63 |
47.0 |
|
45 |
45 |
58.4 |
65 |
47.0 |
|
48 |
48 |
63.7 |
68 |
47.0 |
|
50 |
50 |
63.7 |
70 |
46.5 |
|
53 |
53 |
69.0 |
73 |
56.5 |
|
55 |
55 |
71.0 |
75 |
56.5 |
|
58 |
58 |
73.3 |
83 |
56.5 |
|
60 |
60 |
76.7 |
85 |
56.5 |
|
63 |
63 |
79.4 |
88 |
56.5 |
|
65 |
65 |
83.0 |
90 |
66.5 |
|
68 |
68 |
87.8 |
93 |
66.5 |
|
70 |
70 |
87.8 |
95 |
65.5 |
|
75 |
75 |
94.0 |
104 |
65.5 |
|
80 |
80 |
100.6 |
109 |
75.0 |
|
85 |
85 |
106.0 |
114 |
75.0 |
|
90 |
90 |
110.3 |
119 |
75.0 |
|
95 |
95 |
114.9 |
124 |
75.0 |
|
100 |
100 |
121.3 |
129 |
75.0 |
